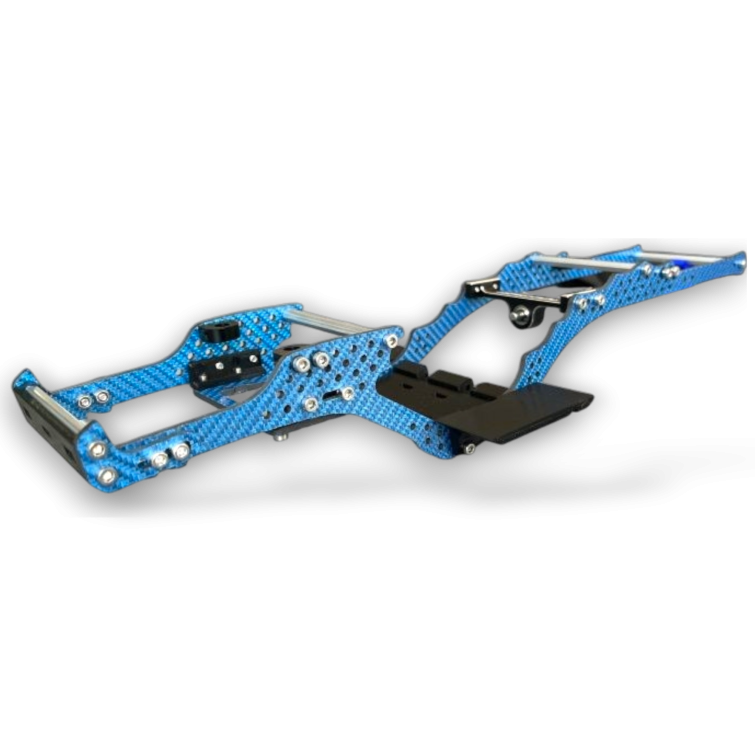

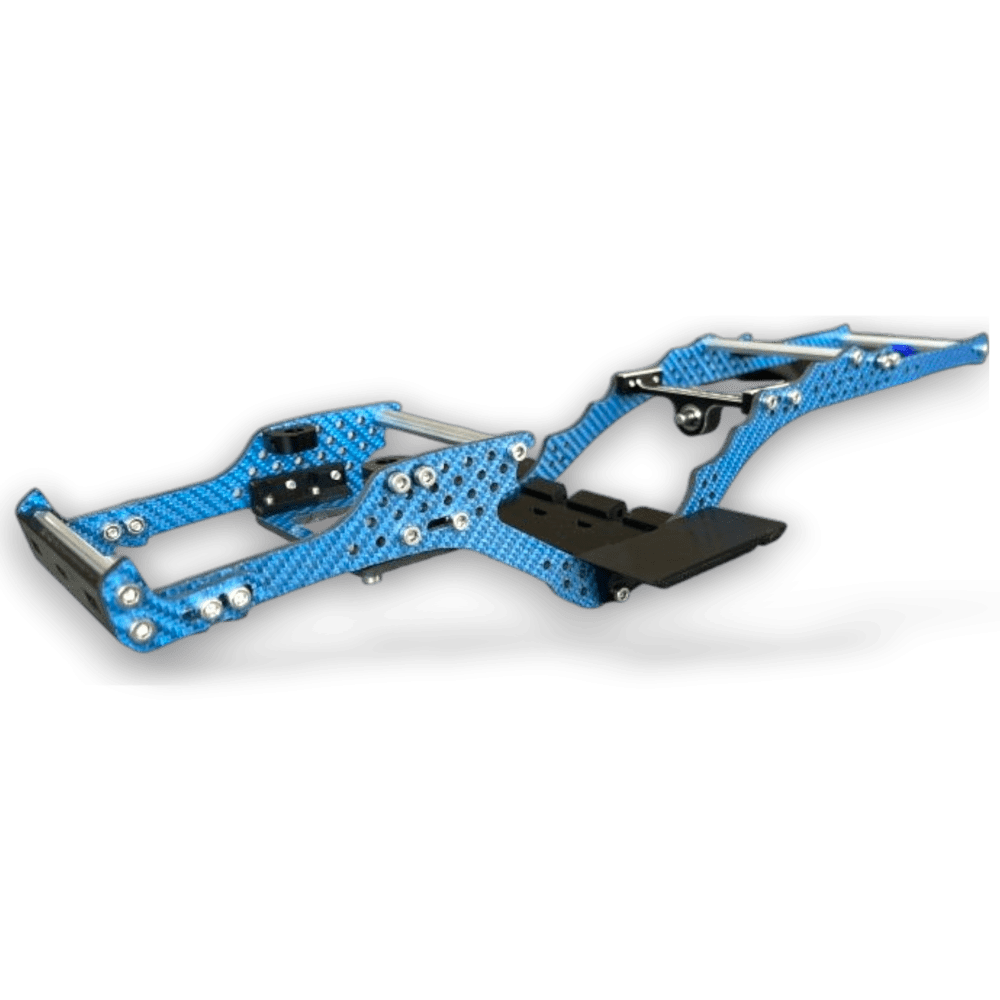

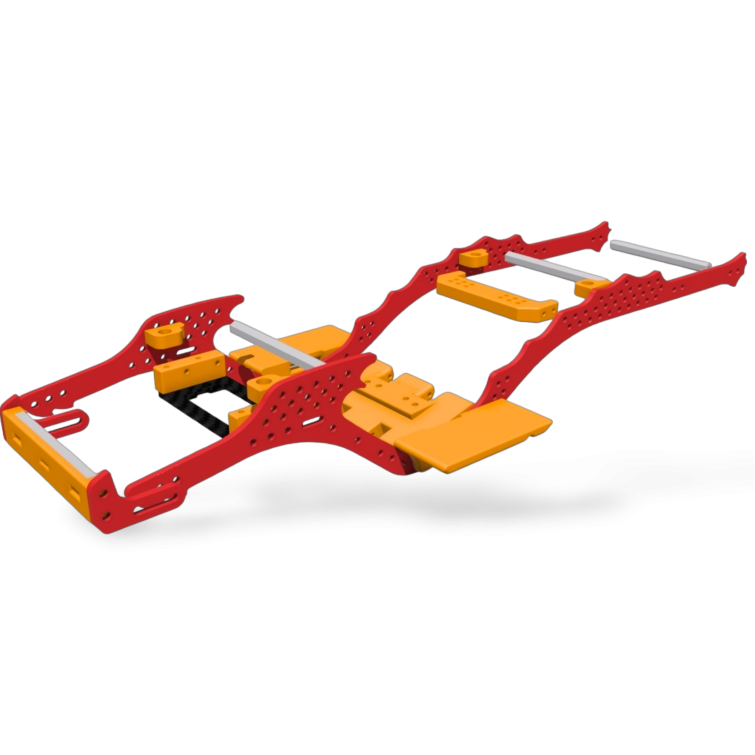

Nordic Dragon LCG chassis Fire&Ice Kit

Nordic Dragon LCG chassis Fire&Ice (Recon G6 certified)

We are thrilled to introduce our latest innovation, the Nordic Dragon LCG Chassis Kit, designed specifically for the WRCCA Performance Scale Class category.
This cutting-edge chassis embodies precision engineering and the rugged durability needed to tackle the most demanding terrains. We’ve crafted it with an ultra-low center of gravity, ensuring unparalleled stability on steep inclines and challenging courses.

Its lightweight yet robust construction maximizes performance without compromising strength. We’ve meticulously tested every detail to deliver exceptional control and maneuverability. With the Nordic Dragon, we aim to set a new benchmark for competitive crawling.

Whether you’re a seasoned pro or just starting your journey, this chassis will give you the edge you’ve been looking for.

We’ve combined innovative design with premium materials to ensure reliability in every competition.

Join us in redefining what’s possible in the WRCCA Performance Scale Class. Let’s conquer the trails together!

KIT includes:

• Dragon chassis (16 degrees skid angle)
• Front Bumper (made from carbon, aluminium spacers and 3d printed parts)
• fiber_newMicro winch mount (carbon plate), the pictures still show the old standard mount.
• Aluminium spacers / crossbars
• Printed skid (you can choose transmission: Dlux Portal Transmission, Scx10, TGH 2.low). It is possible to use mullet setup with reverse mounted TGH 2.low and axial AR44 front axle (with reversed cut diff gears) + axial AR45 rear axle.
• Sliders
• fiber_new V2  Adjustable aluminium carrier/bridge part (Rhino products)
• fiber_new 4 x body mounts – aluminium 6061 (fits with 6mm round body mounts)
• Screws
• Skid width is 78mm. Front and rear of chassis is pinched to 70mm (internal dimension)
• Almost all holes in printed parts are threaded. Do not use electric screwdriver, screw it slowly, because the parts heat up in the process and the screw gets stuck.
• You can use straight or portal axles
• Can be used as Performance-scale, class 2, class 3 and cheater rig. You are only limited by your imagination

No CMS (chassis mount servo) option available, only SOA (servo on axle) or BTA (behind the axle).

Included hardware list:

• 3x 70mm long spacer with 6x M3x10mm screws
• 2x 65mm long spacer for bumper, 2x carbon bumper mount, 1x 3d printed bumper, 4x M3x10mm screw for bumper, 4x M3x12mm screw for bumper mount, 8x M3 nuts
• 4x 6061 aluminium body mount, 8x M3x6mm screws
• 1x carrier/bridge, 4x M3x8 screws
• 1x carbon micro winch mount, 2x M3x10 screws, 2x M3 nuts
• 2x 3d printed sliders
• 1x 3d printed skid (4 version, choose which one you want when purchasing),
• 4x M3x16 worm screw (for links on skid side),
• 2x/6x/8x M3x12mm screw for rear slider/skid mount (scx10/2low version has 6x, dlux has 8x)
• 2x M3x20/30mm screws for front links slider/sklind mount (depending on skid version)

What you need:

• 2mm hex screwdriver
• 2.5mm hex screwdriver
• M3 spanner or small pliers
• M3 thread cutter if necessary
• An axle set of your choice/favorite
• Link set for your axle setup. Sold it separately, ask our partners ( Centre Of Gravity RC, Mike Chu )
• Servo, ESC, transmitter set, micro winch servo if you need
• 4x body post mount set
• A crawler body that fits you and you like. We use Creeper or Lilly bodies
• And, of course, practice, practice and practice. Have fun!
